MECHANICAL DATA | |

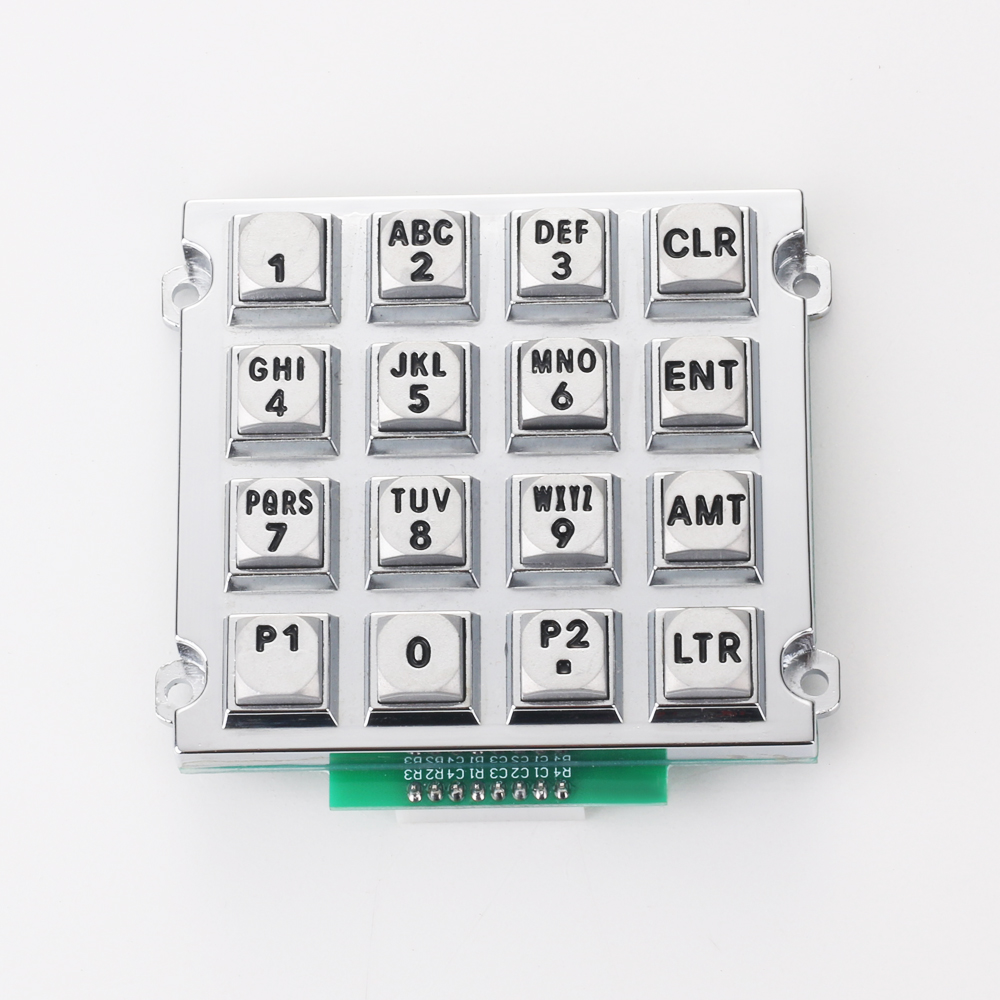

Model Number | JXZ02 |
keys | 16 keys |

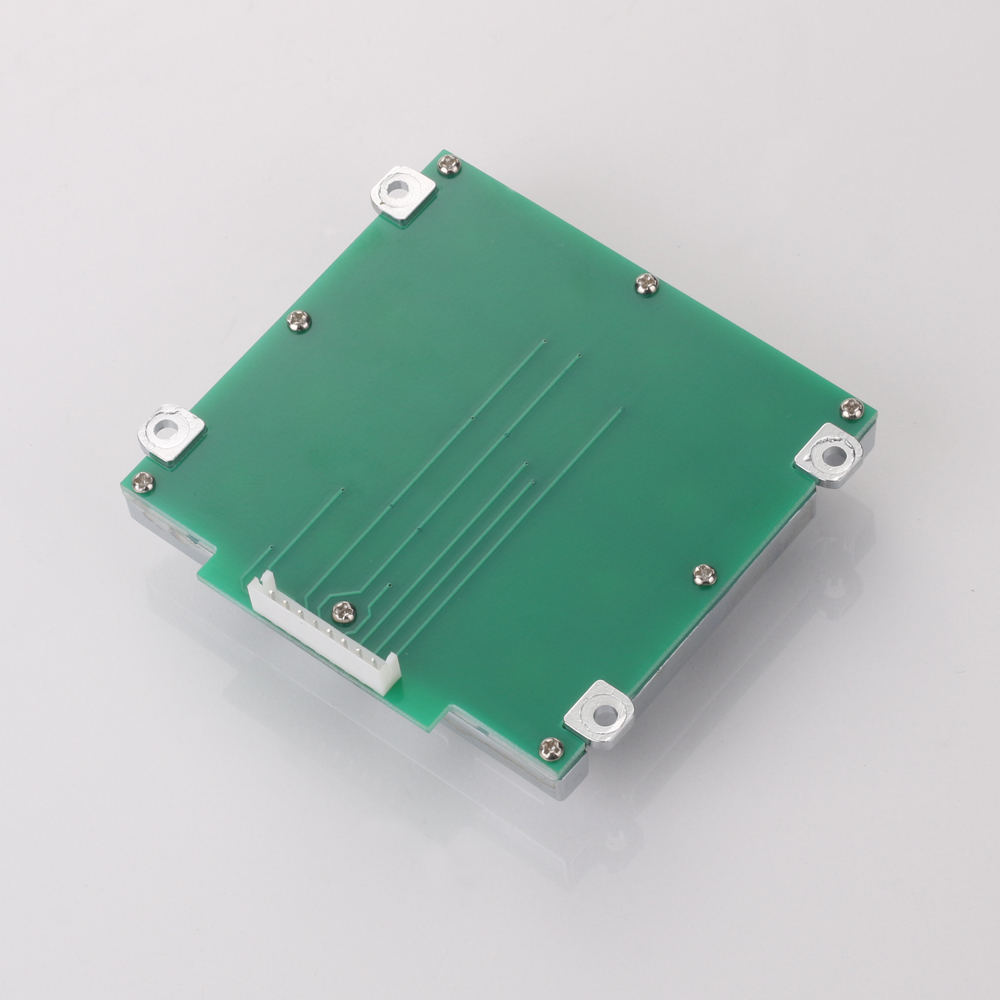

Switching material | carbon-on-Gold key switch technology PCB |
Actuation Force | 1.5 N+/-0.1N (pressure point) |
Frame/keys materials | Znic alloy |

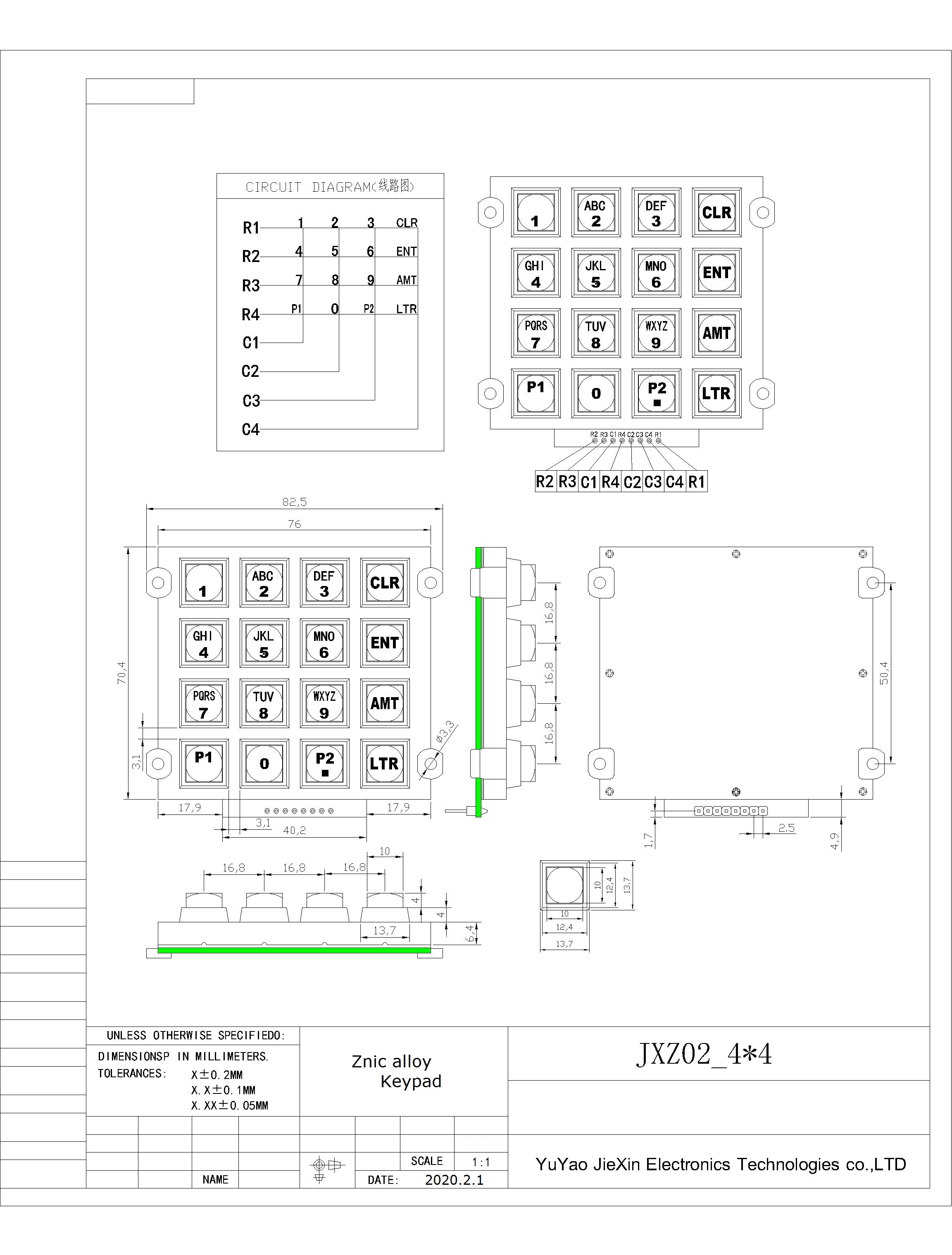

Dimensions | 70mm*76mm |
Key Size | 10.0mm *10.0mm |
Key Travel | 1.8-2.0mm |
Key life | more than 2 million of operations |
G.W. | 210g approx |
ELECTRICAL DATA | |
Power supply voltage | 0-24V DC |
Current Rating | appr. 20mA |
Contact resistance | 100 ohm (max) |
Electrical lifetime | > 5 years |
Interface | Matrix Male pinout connector 8PIN 2.54mm |
OS | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +75℃ |
Storage temperature | -35℃ to +85℃ |
Operating RH | 30-90%RH |
Atmospheric pressure | 60-106Kpa |
RELIABILITY | |
Protection Level | IP65(front panel) |
Vandal resistant | IK09 |
