MECHANICAL DATA | |
Model Number | JXKT06 |
keys | 12 keys |
Switching material | carbon-on-Gold key switch technology PCB |
Actuation Force | 2.0 N+/-0.1N (pressure point) |
Frame/keys materials | Stainless steel 304 |

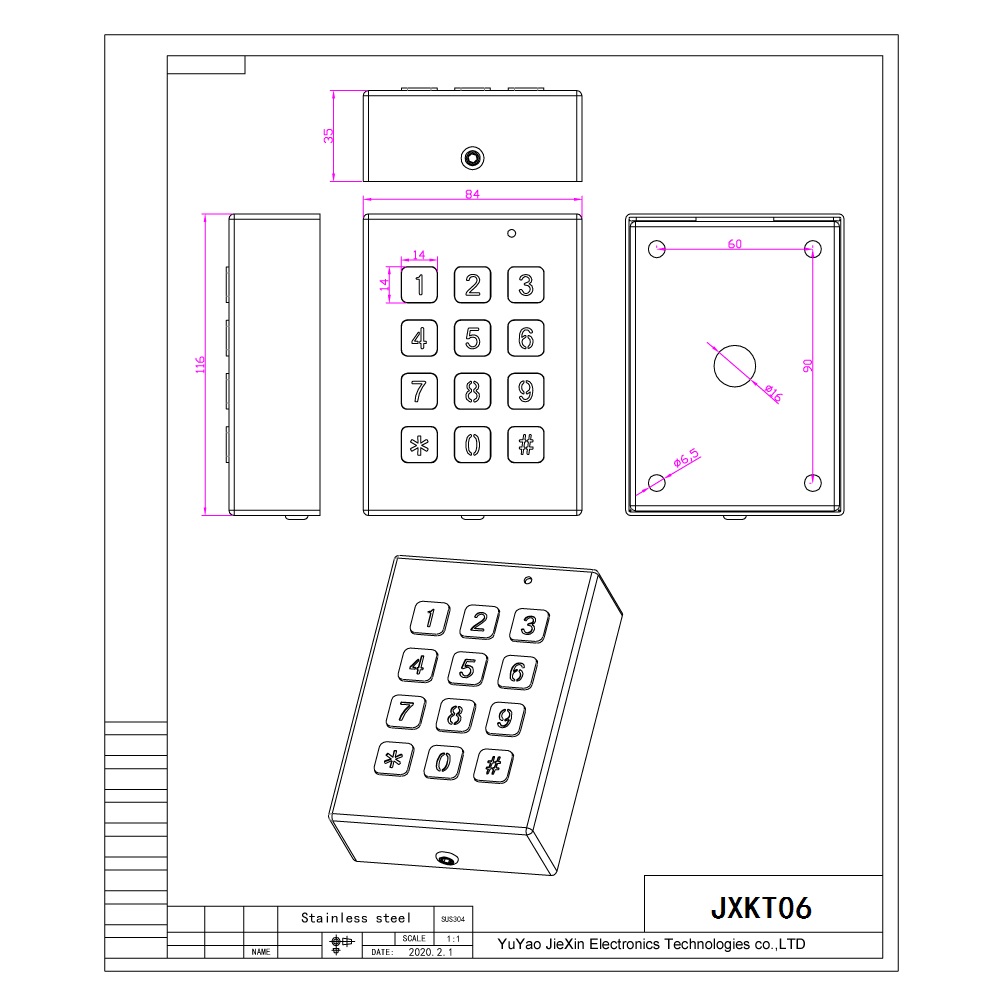

Dimensions | 84*116*35mm |
led color | Blue/white/Red/Green |
Key Size | 14.0mm *14.0mm |
Key Travel | 0.45mm |
Key life | more than 2 million of operations |
G.W. | 550g approx |
ELECTRICAL DATA | |
Power supply voltage | 5VDC Or customize |
Current Rating | appr. 20mA |
Backlight: | Yes |
Contact resistance | 5 ohm (max) |
Electrical lifetime | > 5 years |
Interface | Matrix/USB/RS232 |
OS | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +75℃ |
Storage temperature | -35℃ to +85℃ |
Operating RH | 30-90%RH |
Atmospheric pressure | 60-106Kpa |
RELIABILITY | |
Protection Level | IP65(front panel) |
Vandal resistant | IK09 |
