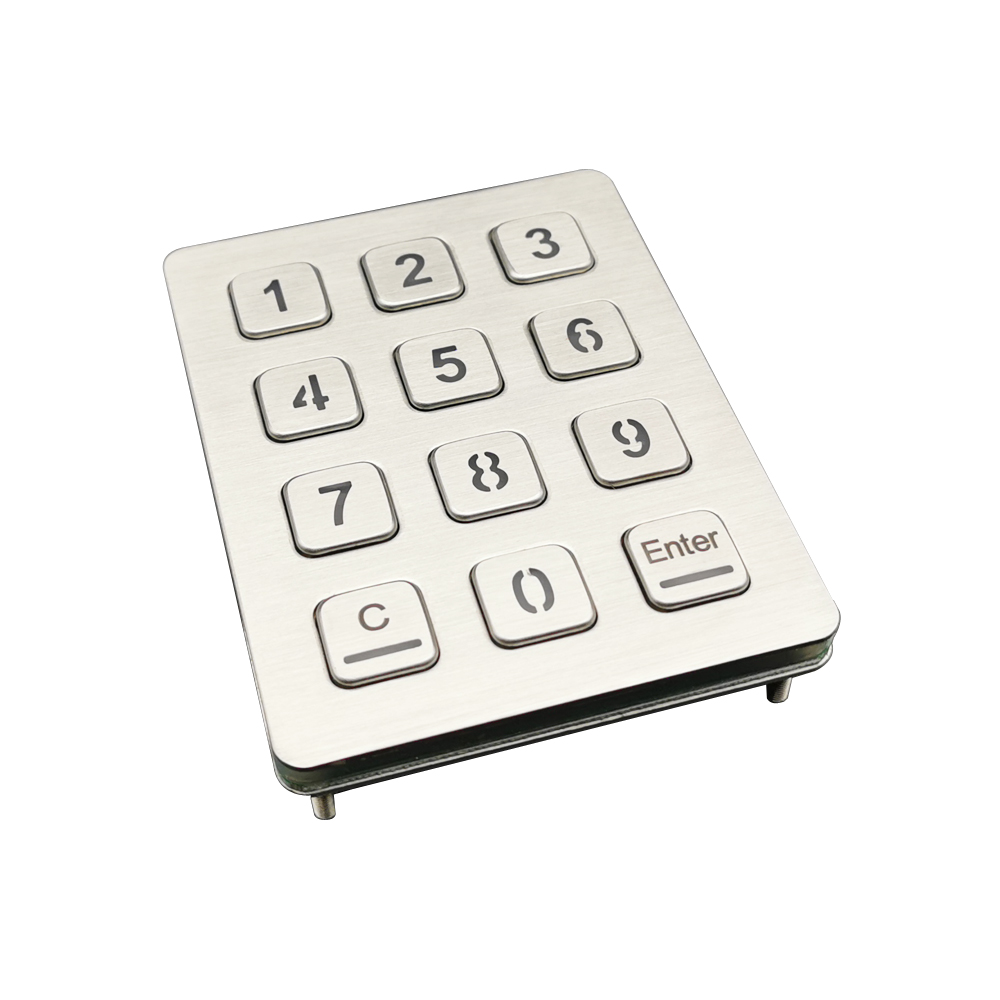

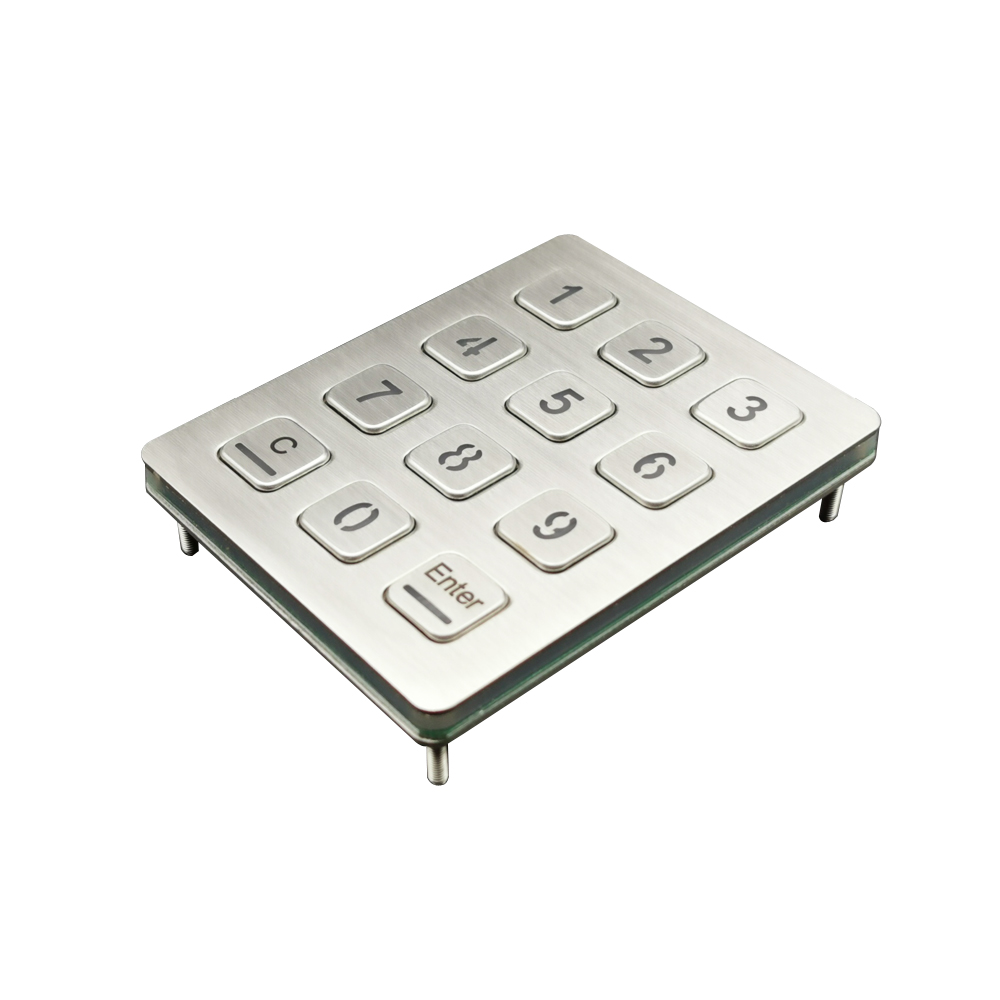

Backlit matrix tastatur 3x4 numeric waterproof custom stainl

Model Number

JXS01B-QR

keys

12 keys

Switching material

carbon-on-Gold key switch technology PCB

Actuation Force

2.0 N+/-0.1N (pressure point)

Frame/keys materials

Stainless steel 304

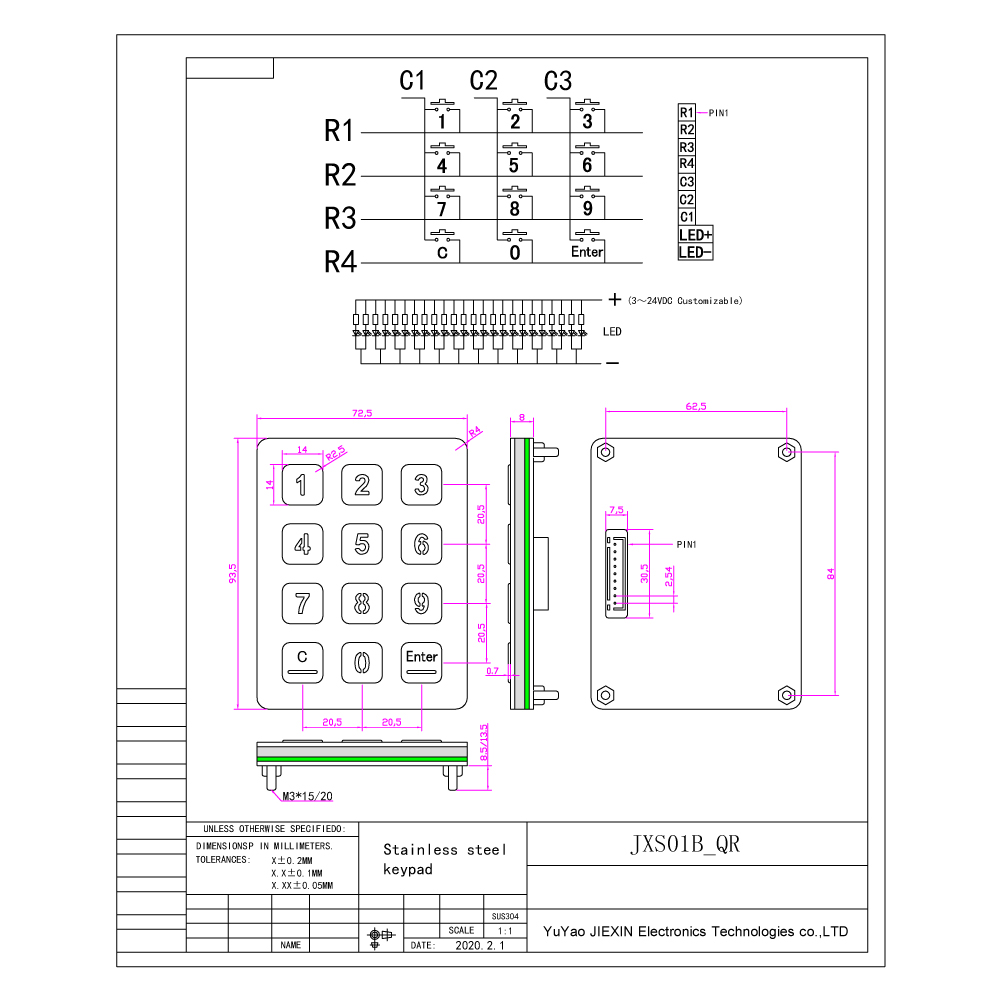

Dimensions

72.5mm *93.5mm

led color

Blue/white/Red/Green

Key Size

14.0mm *14.0mm

Key Travel

0.45mm

Key life

more than 2 million of operations

G.W.

235g approx

ELECTRICAL DATA

Power supply voltage

 5VDC  Or customize

Current Rating

appr. 20mA

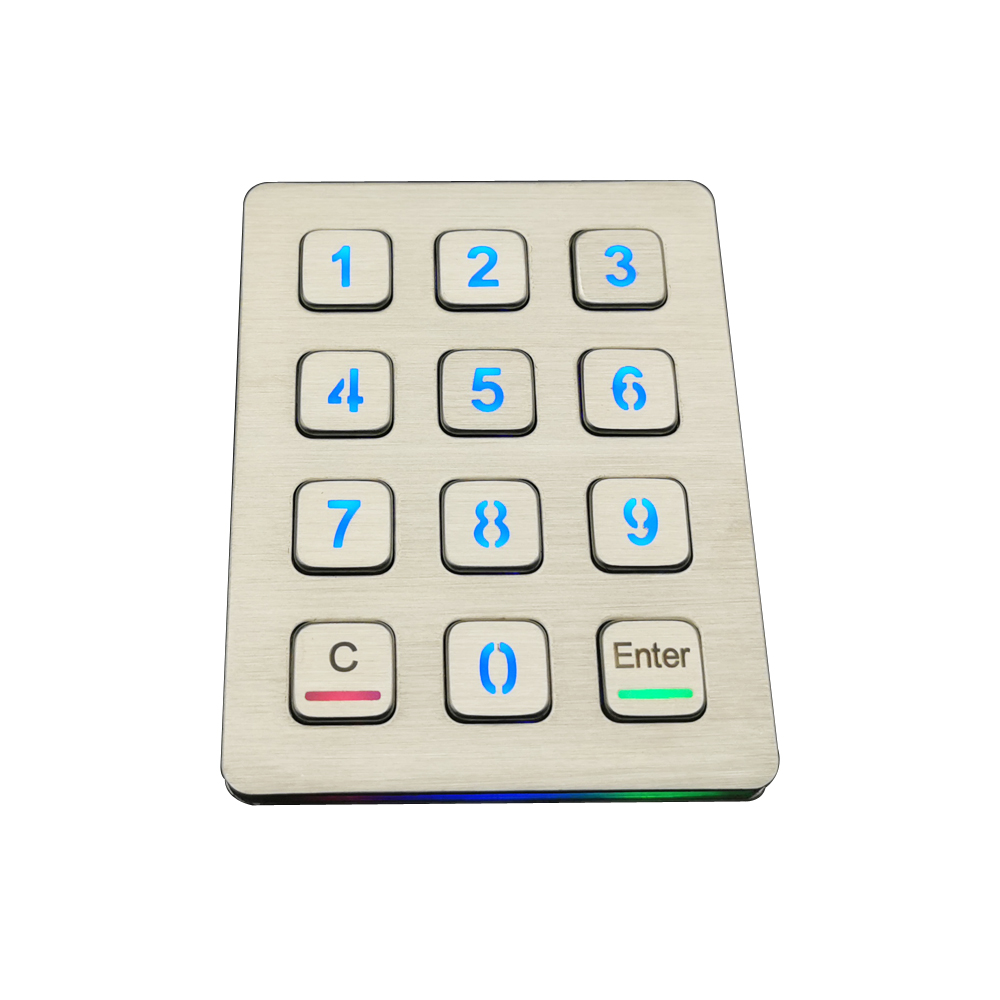

Backlight:

Yes

Contact resistance

5 ohm (max)

Electrical lifetime

> 5 years

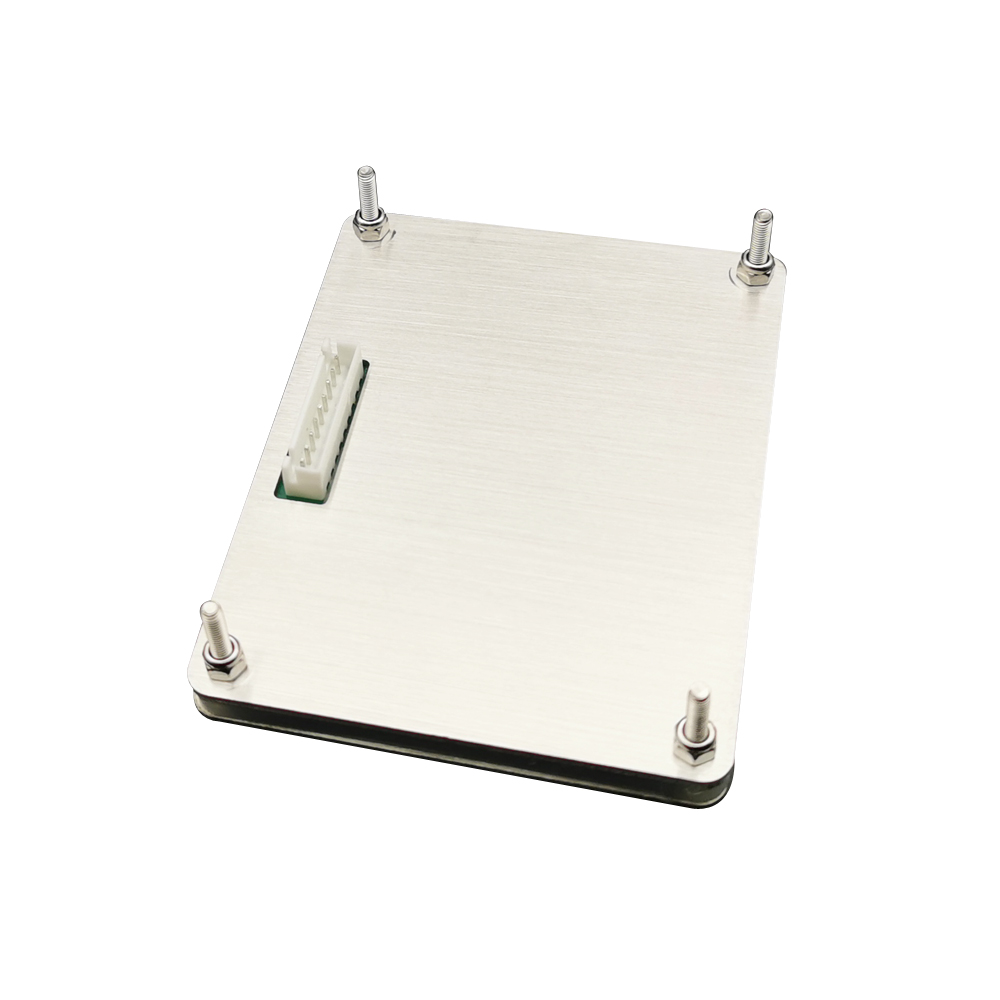

Interface

 Matrix Male pin out connector  9PIN 2.54mm

 Or customize PS2/USB/RS232

OS

All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +75℃

Storage temperature

-35℃ to +85℃

Operating RH

30-90%RH

Atmospheric pressure

60-106Kpa

RELIABILITY

Protection Level

IP65(front panel)

Vandal resistant

IK09
