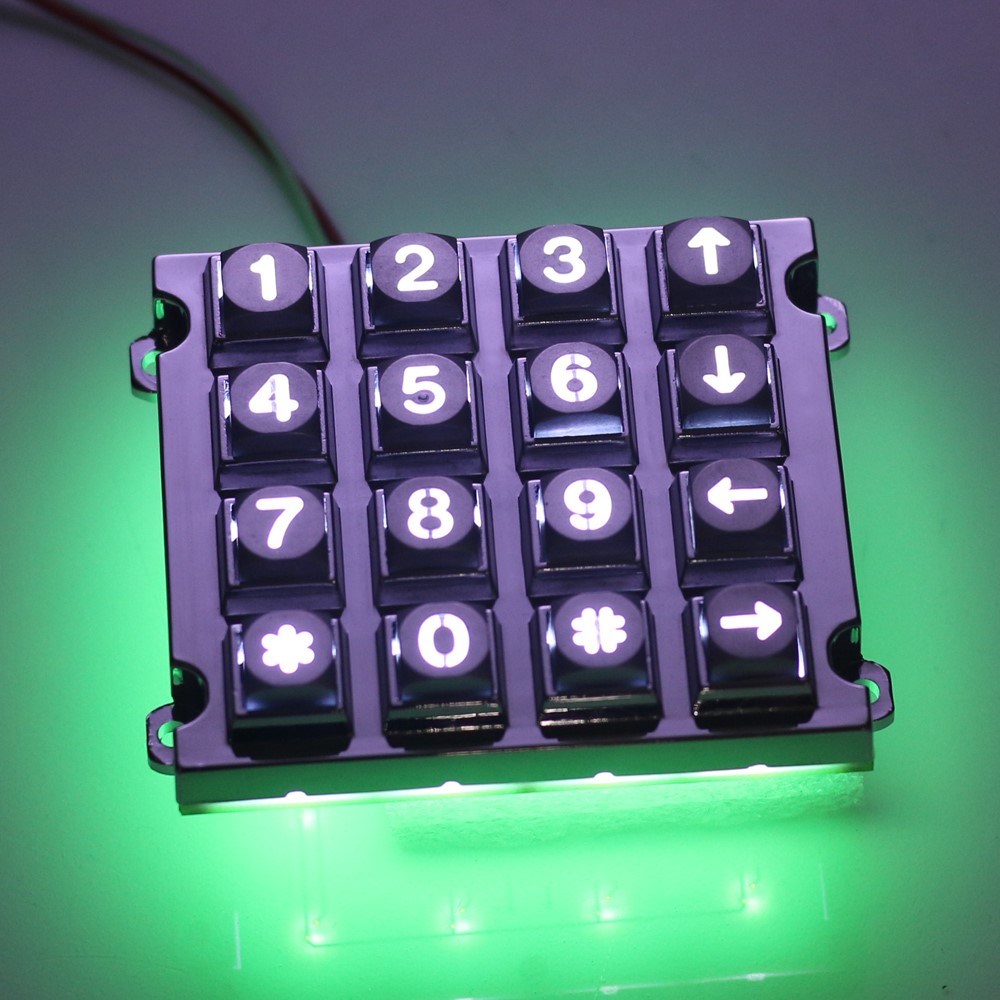

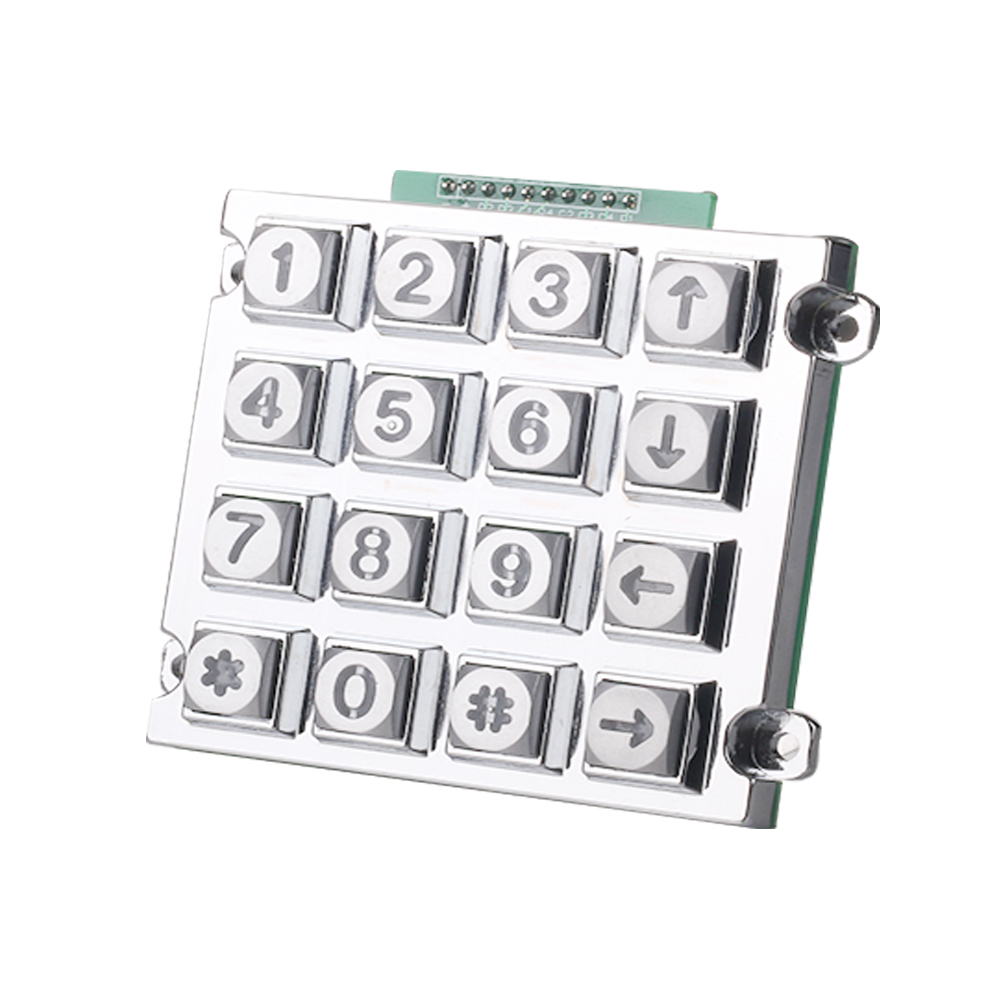

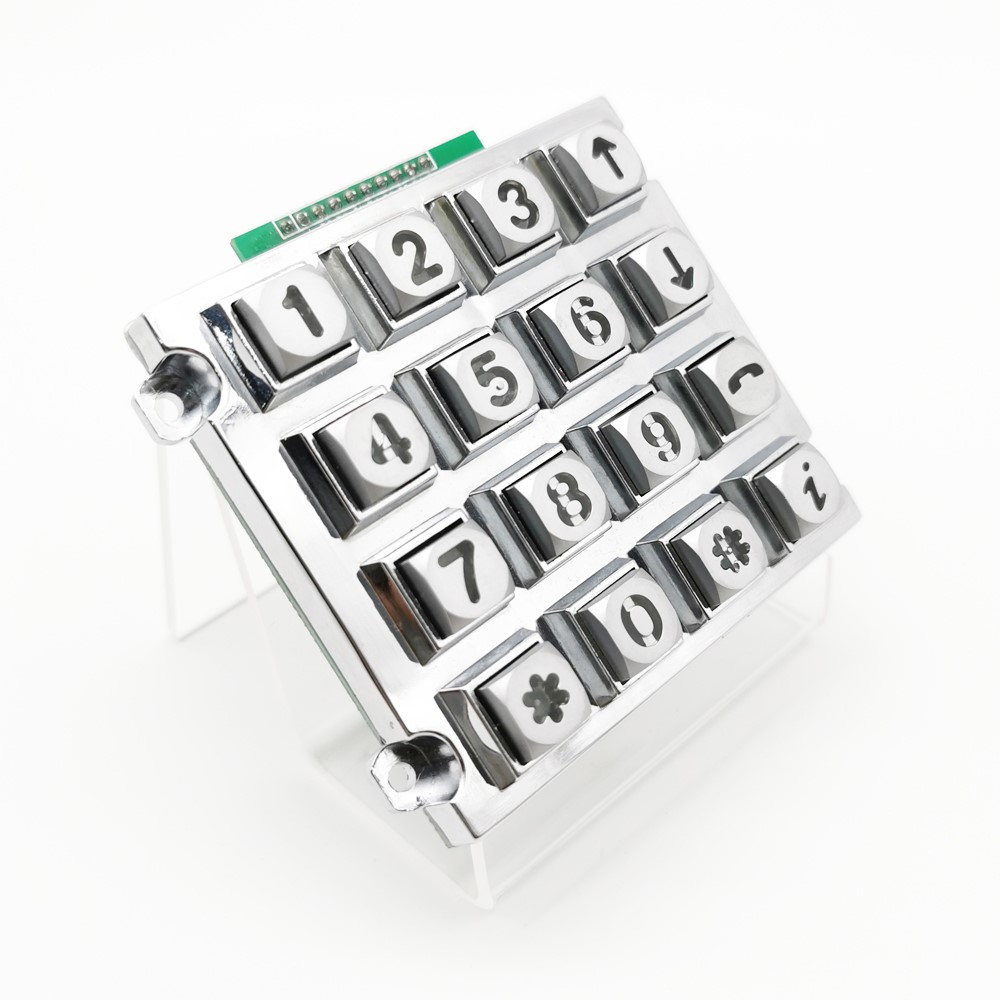

Numeric Znic Alloy Backlight 4x4 Telephone Waterproof Metal

Model Number

JXZ02B

keys

16 keys

Switching material

carbon-on-Gold key switch technology PCB

Actuation Force

1.5 N+/-0.1N (pressure point)

Frame/keys materials

Znic alloy

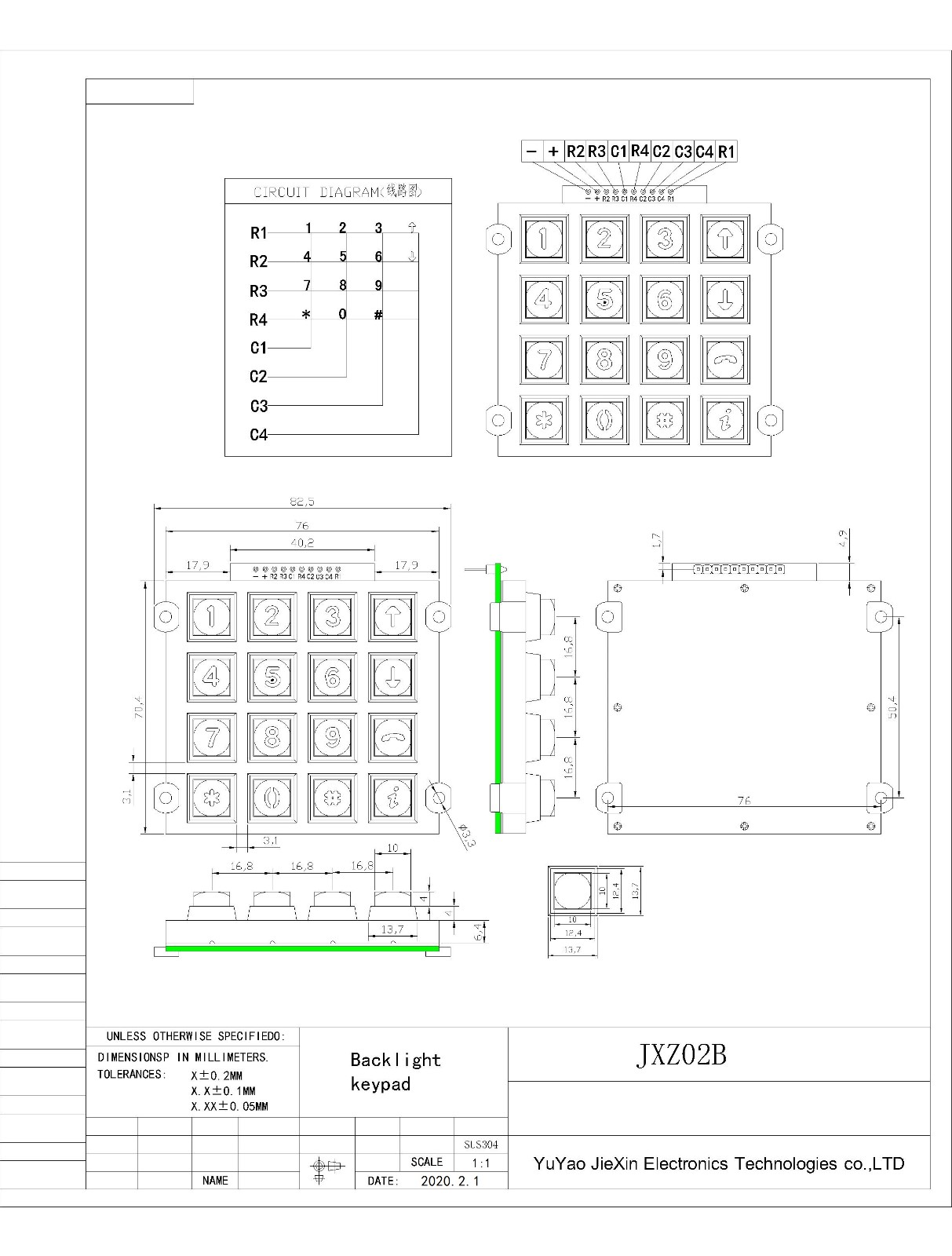

Dimensions

70mm*76mm

led color

White  Blue  Green

Key Size

10.0mm *10.0mm

Key Travel

1.8-2.0mm

Key life

more than 2 million of operations

G.W.

200g approx

ELECTRICAL DATA

Power supply voltage

 3V  5VDC  Or customize

Current Rating

appr. 20mA

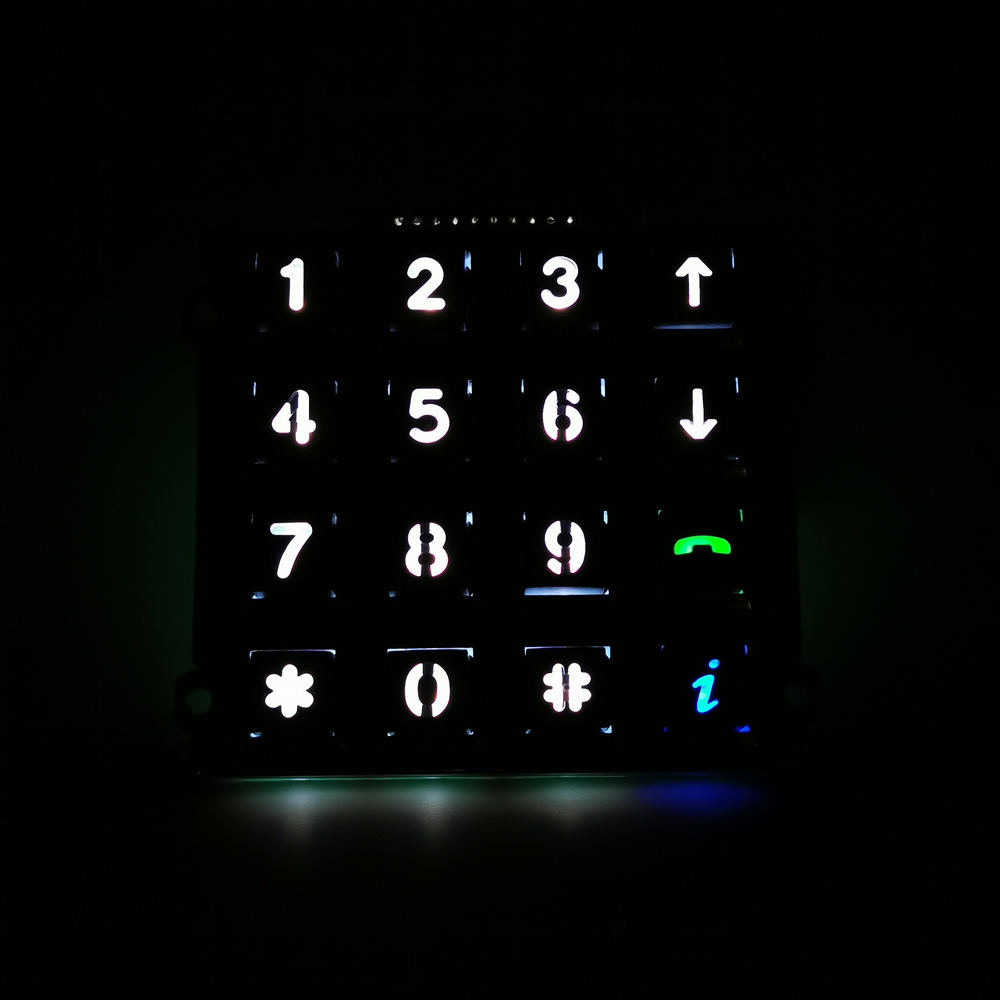

Backlight:

Yes

Contact resistance

100 ohm (max)

Electrical lifetime

> 5 years

Interface

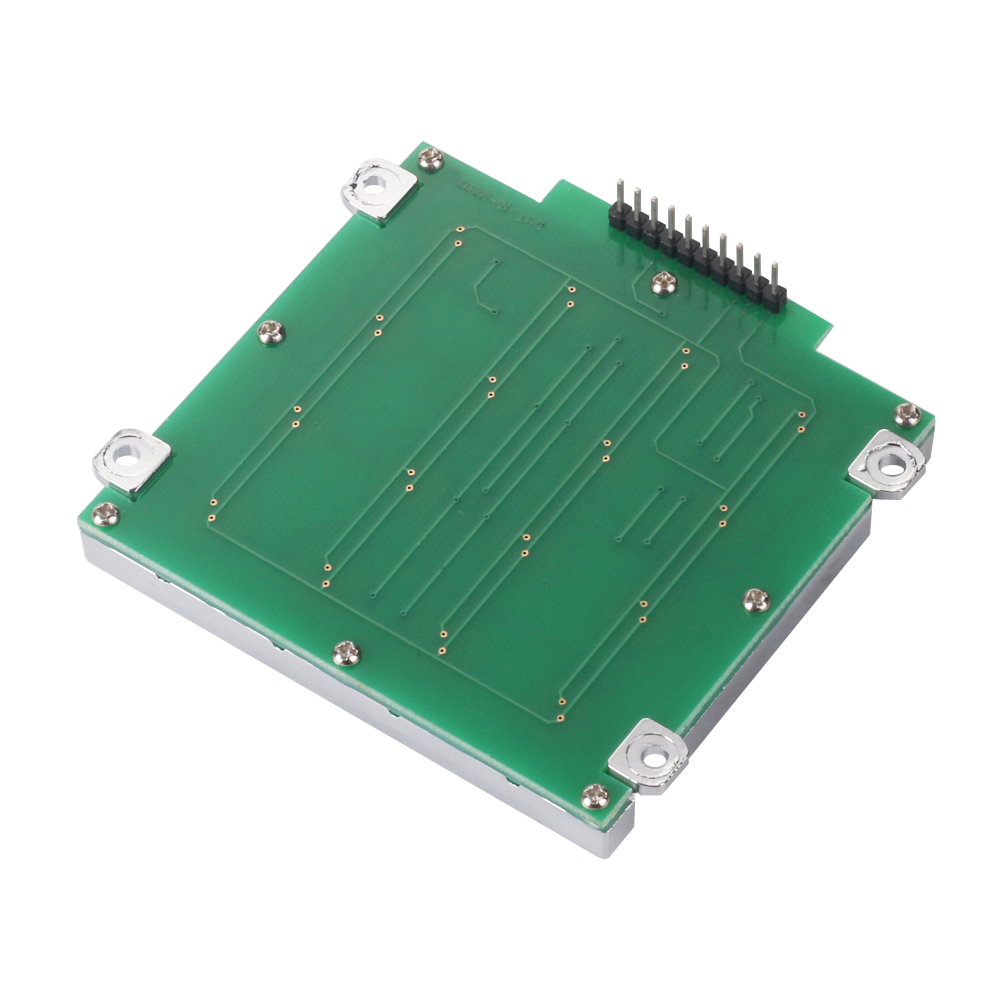

Matrix  Male pinout connector  10PIN 2.54mm

OS

All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +75℃

Storage temperature

-35℃ to +85℃

Operating RH

30-90%RH

Atmospheric pressure

60-106Kpa

RELIABILITY

Protection Level

IP65(front panel)

Vandal resistant

IK09
